INTG3 – Integrity GRI Series

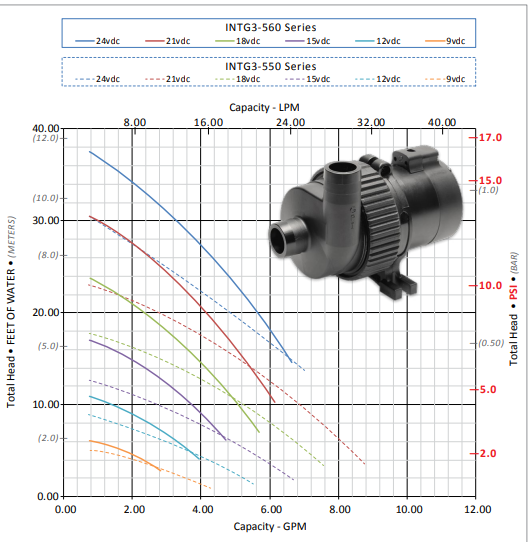

The INTG3 magnetic drive centrifugal pump from GRI Pumps’ Integrity series combines reliability, quiet operation, and zero leakage in a compact, lightweight form factor (< 0.8 lb). Engineered for fluid circulation and transfer, it covers a wide performance range from about 7.5 L/min up to over 30 L/min, with versions reaching 33.5 L/min (8.85 GPM).
As the exclusive distributor in Italy, Techma GPM provides application consulting, OEM customization, and fast delivery.

Key Benefits

Sealless, hermetically sealed: zero leakage, enhanced safety, and minimal maintenance.
Integrated brushless DC motor 12–24 V with variable speed control (supply, optional 0–5 V analog, PWM and tach feedback).
Compact and lightweight: integrated design with few parts.
Long service life, low power draw, and quiet operation.
AC options 110/220 VAC auto-sensing available for OEM quantities.
Multiple inlet/outlet configurations for OEM integration.
IP68 (continuous submersion) on request, subject to minimum order quantities.

Technical Specifications

Motor: integrated brushless DC.
Power Supply: 12–24 VDC; optional 110/220 VAC auto-sensing (OEM quantities).
Max flow: 33.5 L/min.
Max head: 11.3 m – 16 PSI.
System pressure: up to 75 PSI.
Wetted materials: housing/cover/impeller PPS, shaft ceramic, O-ring FKM or EPDM.
Weight: 363 g.
Protection: IP68 on request (continuous submersion; MOQs may apply).
