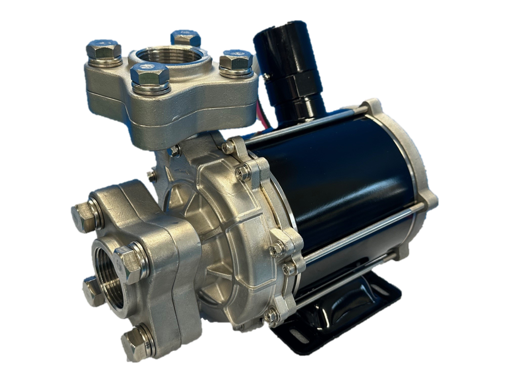

Sanso PDH-1502 – Magnetic Drive Centrifugal Pump
The Sanso PDH-1502 magnetic drive centrifugal pump is engineered for precision cooling and temperature control in semiconductor tools, advanced chillers, and high-reliability OEM systems. Its sealless design ensures zero leakage, long service life, and compact installation, especially when paired with the DUF-50T inverter for optimized performance and energy savings.
Key Benefits
- Sealless magnetic drive – zero leakage, higher safety, minimal maintenance.
- High efficiency & long life – brushless design with robust bearings for continuous duty.
- Compact & lightweight – easy to integrate in dense OEM layouts.
- Optimized with DUF-50T inverter – stable control and energy savings across the cooling cycle.
Applications
- Semiconductor manufacturing equipment and tool cooling
- Temperature control units (TCUs) and industrial chillers
- Resin molding, printing, and process machinery
- High-reliability cooling for electronics and broadcasting
Typical fluids: Galden, Fluorinert, fresh water, ethylene glycol aqueous solutions, etc.
Liquid temperature: from approx. -20 °C to +120 °C (typical range)
Pump Performance
Performance examples for PDH-1502 measured with Galden HT200 at 120 °C and 20 °C, driven by DUF-50T (2.2 kW, 3-phase 400 V).

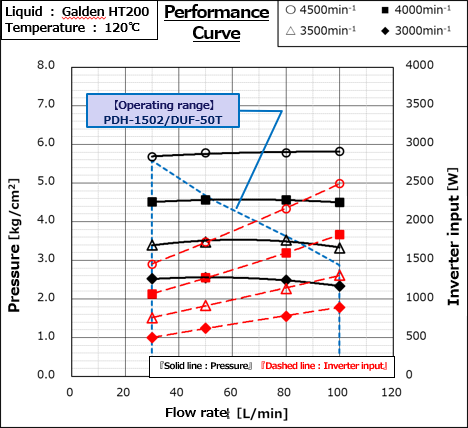

Performance – 120 °C (Galden HT200)

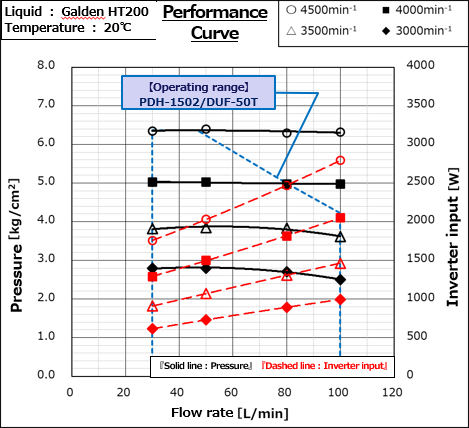

Performance – 20 °C (Galden HT200)
Dimensions & Weights
PDH-1502 – overall dimensions
Weight: 13,5 kg
DUF-50T – inverter dimensions
Weight: 1,7 kg
Note: Typical weight class for the PDH-1500 series pump + inverter is suitable for panel or skid integration. For exact weights, refer to the specific datasheet revision.

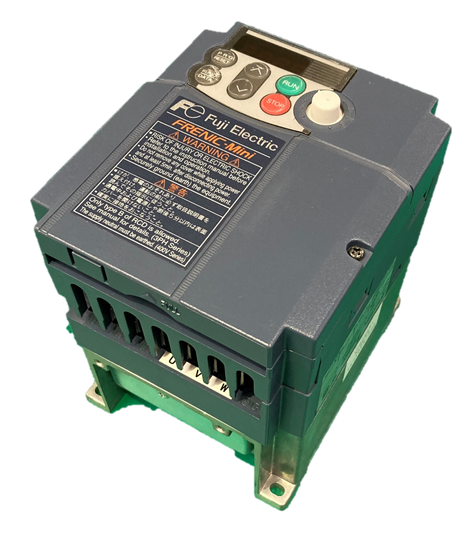

DUF-50T Inverter – Highlights
- Stable frequency control for precise flow and head regulation.
- Optimized for PDH series – plug-and-run integration and protection features.
- Energy saving with variable speed operation and reduced thermal load.
- Compact footprint – ideal for panel-mount OEM systems.
Design Concept: Built for the Future
Energy Saving
(for Earth)
High-efficiency hydraulics and motors reduce power consumption across the cooling cycle.
Magnetic drive, sealless construction eliminates leakage points and minimizes maintenance.
Long Life & High Reliability
(for Relief)
Small & Lightweight
(for Space)
Compact layouts enable higher component density in OEM chillers and tools.
Let’s talk about your application
Techma GPM supports designers and system integrators in selecting high-performance liquid pumps. Request a technical assessment for your specific application, or contact us for any other information.
