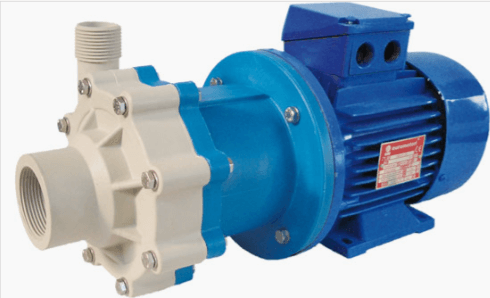

CM MAG – P
Plastic Magnetic Drive Centrifugal Pumps
CM MAG – P is the series of magnetic drive centrifugal pumps engineered for the safe transfer of chemically aggressive fluids. The sealless design eliminates leakage, lowers maintenance, and ensures safety for both operators and plant—making it the ideal choice for OEMs, industry, and laboratories seeking continuous operation with reduced operating costs. As a technical partner, Techma GPM supports selection, sizing, and machine integration with fast response times and flexible supply.
Main benefits
- Hermetic sealing: no emissions, zero leakage.
- Chemical-resistant materials: casing and impeller in PP or PVDF.
- Long service life: bearings and supports in PTFE/Graphite, designed for continuous duty.
- Compatibility: O-rings available in Viton or EPDM.
- Techma support: technical consulting, OEM customization, and fast availability across Italy.
Construction and materials
Technical data | CM MAG – P Series
- Casing – Impeller & Magnet: PP / PVDF
- Shaft & Thrust Ring: PTFE / Graphite
- Shaft bearings: PTFE / Graphite
- O-rings: Viton – EPDM
- Flow rate: up to 20 m³/h
- Head: up to 18 m
- Liquid temperature: up to 90 °C
- Liquid specific gravity: up to 1.9 kg/dm³
- System pressure: PN 6
Typical applications
- Transfer and recirculation of acids, alkalis, and solvents.
- Water treatment plants and chemical neutralization.
- Chemical and pharmaceutical processes where safety is critical.
- OEM lines requiring leak-free operation with minimal maintenance.
Why choose Techma
- Specialists in magnetic drive pumps and aggressive-fluid applications.
- Technical consulting and sizing support for OEMs and integrators.
- Fast turnaround: broad availability and rapid handling of urgent needs.
Contact us
Want to select the most suitable CM MAG – P pump for your system? Send us your process data (fluid, temperature, flow rate, head, connections, environment) and receive a fast sizing of the best CM MAG – P model.
