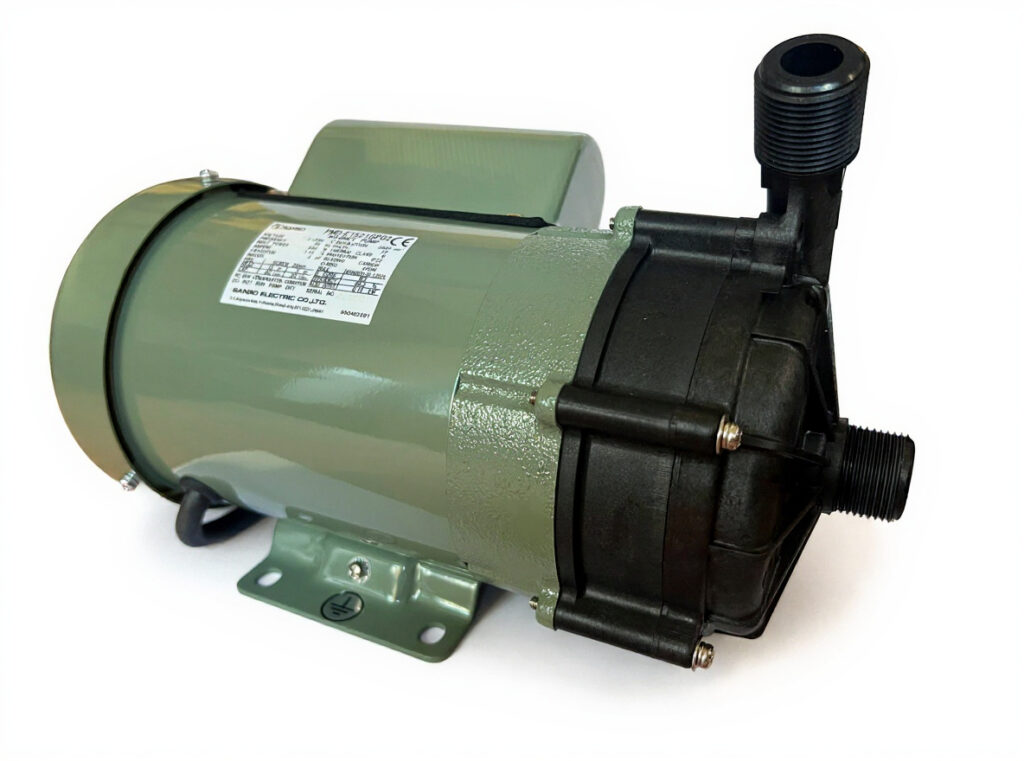

Sanso AC Pumps – PMD 1521
The Sanso AC PMD-1521 magnetic drive centrifugal pump is designed for recirculation, cooling, and industrial processes requiring continuous operation and reliability. The sealless design eliminates leakage, reducing maintenance and operating costs. The body is made of PPO GF (Noryl) for strength and durability, with versions GPG1 (hose barb) and GPG2 (threaded) to suit different installation needs.
Benefits of the PMD-1521 Series
- Sealless magnetic drive – zero leakage, low maintenance.
- Flow up to 60 L/min and head up to 18.5 m (50/60 Hz).
- Made of PPO GF (Noryl) for excellent mechanical and chemical resistance.
- Versions: GPG1 with HB 20 mm fittings, GPG2 with 1″ threaded fittings.
- 230 V AC single-phase (220/240 V, 50/60 Hz).
- Liquid temperature up to 90 °C; weight 7.5 kg.
Typical Applications
- Chillers and cooling systems
- Laser cooling
- Medical equipment cooling
- Beverage dispensers
- Marine / onboard cooling
- Solar thermal heating
- Fuel cells
- Industrial recirculation systems
Curves & Dimensions
Specifications
| Model | Voltage (Hz) | Input (V AC) | Suction Port | Discharge Port | Head (m) | Flow (L/min) | Weight (kg) | Pump Material | Liquid Temp. (°C) |
|---|---|---|---|---|---|---|---|---|---|
| PMD-1521 GPG1 | 220/240 – 50/60 | 230 | HB 20 mm | HB 20 mm | 13.5 / 18.5 | 50 / 60 | 7.5 | PPO GF | up to 90 |
| PMD-1521 GPG2 | 220/240 – 50/60 | 230 | TH 1″ | TH 1″ | 13.5 / 18.5 | 50 / 60 | 7.5 | PPO GF | up to 90 |
Legend: HB = Hose Barb (flexible-tube fitting); TH = Threaded connection; PPO GF = Glass-filled Polyphenylene Oxide (Noryl).
Contact Us
Techma GPM is your trusted supplier for Sanso AC pumps. Write to us to receive performance curves, dimensional drawings, and assistance in selecting the best model for your needs.
