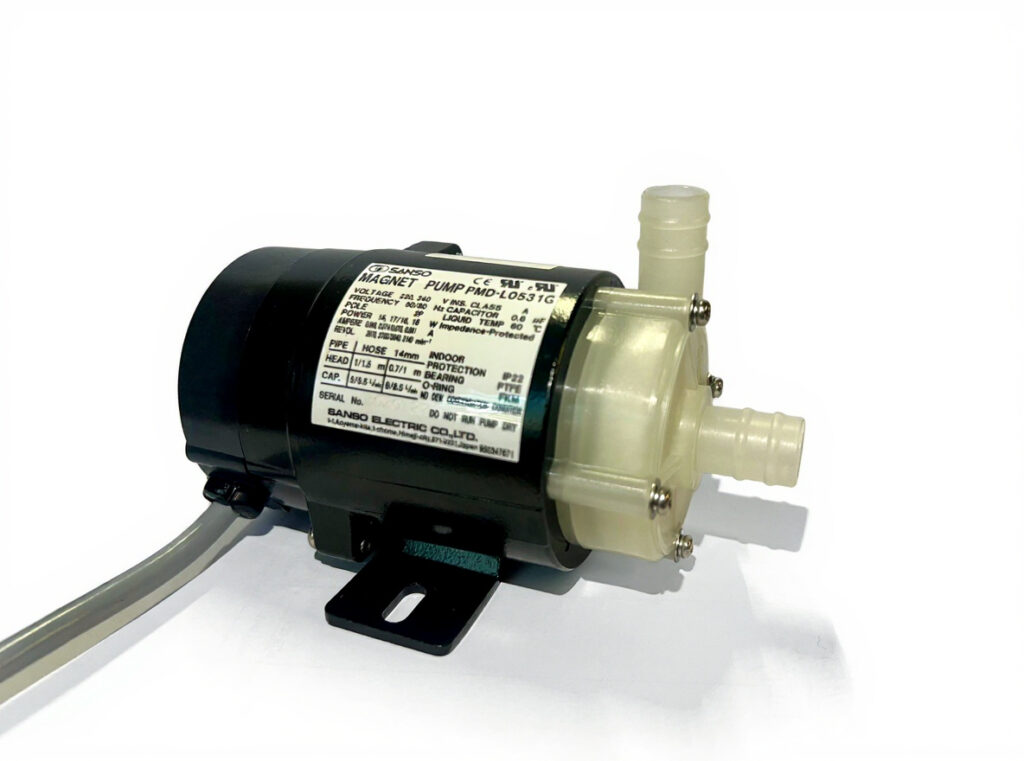

Sanso AC Centrifugal Pumps – PMD 0531
Sanso AC magnetic drive centrifugal pumps combine reliability and quiet operation in a compact design for recirculation and transfer of liquids. The PMD AC series is ideal for machines and systems that require continuous duty with low operating costs.
Benefits of the PMD (AC) series:
- AC 230V 50/60 Hz motor for reliable continuous operation.
- Sealless magnetic drive — zero leakage and reduced maintenance.
- PP GF (glass-filled polypropylene) construction for good chemical resistance.
- Hose Barb 14 mm ports for easy in-line integration.
- Compact and lightweight: ~0.7 kg.
- Simple installation.
- Typical operating range: up to 11–13 L/min and 1.8–2.2 m head (model PMD-0531).
Typical applications
- Chillers and cooling systems
- Laser cooling
- Recirculation and filtration
- Beverage dispensers
- Instrumentation and medical devices
- Light industrial processes
- Marine and on-board services
- Liquid heating/cooling loops
Curves & Dimensions
Specifications
| Model | Voltage (Hz) | Input Power (W) | Suction connection | Discharge connection | Head (m) | Flow (L/min) | Weight (kg) | Pump material | Liquid temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| PMD-0531 | 230V ~ 50/60 | 18 / 20 | HB 14 mm | HB 14 mm | 1.8 / 2.2 | 11 / 13 | 0.7 | PP GF | -20 ÷ 60 |
Legend: HB = Hose Barb; PP GF = Glass-filled polypropylene. Data refers to PMD-0531. :contentReference[oaicite:6]{index=6}
Contact us
Techma GPM is your partner for supplying Sanso AC pumps. Write to us to receive curves, dimensions, and sizing support for the most suitable model.
