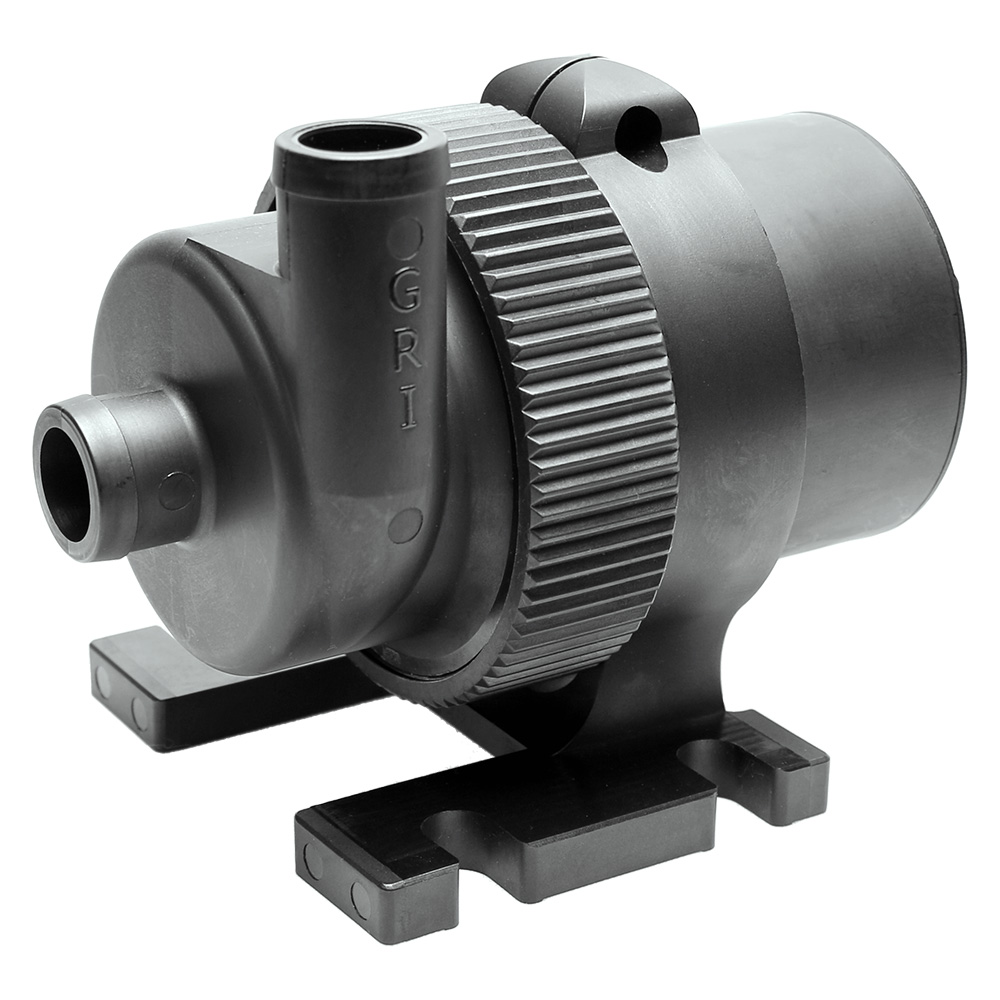

INTG6 – Integrity GRI Series
Reliability, safety, and high performance in a compact footprint: the INTG6 magnetic drive centrifugal pump from GRI’s Integrity series is the ideal choice for OEMs, labs, and industrial applications that demand customized, quiet, leak-free solutions. As the exclusive distributor for Italy, Techma GPM provides technical expertise and fast support to integrate this technology into new designs or to retrofit legacy equipment.
Key benefits
- Hermetically sealed, leak-free operation: sealless design eliminates fluid leakage.
- Integrated brushless DC motor: electronic control with 12–24 V and 48 V options.
- High chemical compatibility: PPS pump body and ceramic shaft for resistance to aggressive fluids.
- Efficient and quiet: low power draw, low noise, long service life.
- Flexible OEM solution: customizable configurations (CAN-Bus, PWM, tach output, 0–5 V analog inputs).
Technical Specifications
- Max flow: 83 L/min (22 GPM)
- Max head: 35 PSI (80 ft)
- System pressure: up to 75 PSI
- Wetted materials: PPS – EPDM/FKM O-rings – Ceramic shaft
- Motor: integrated brushless DC, 12/24/48 VDC
- Weight: approx. 1.6 kg
- Protection: IP68 (on request)
| Model | Voltage | Speed control | Leads | Max flow (L/min) | Max head (m / bar) | Inlet/Outlet connections | O-ring material |
|---|---|---|---|---|---|---|---|
| INTG6-244 | 12–24 VDC (Performance based on 24 V supply) |
Analog (0–5 V nominal) or PWM | 3 leads (+), (–), SPD CTRL | 45.0 L/min (12.0 GPM) | 18 m (25.5 PSI) | 1 MHB (male hose barb) | EPDM |
| INTG6-484 | 48 VDC | Analog (0–5 V nominal) or PWM | 3 leads (+), (–), SPD CTRL | 56.3 L/min (15.0 GPM) | 21 m (30.3 PSI) | 1 MHB (male hose barb) | EPDM |
Legend:
MHB = Male Hose Barb (push-on hose connection)
O-ring materials: EPDM = Ethylene-Propylene Diene Monomer, FKM = Fluoroelastomer (on request)
Typical Applications
- Electronics and data-center liquid cooling
- Laser cooling and industrial chillers
- Medical devices and research laboratories
- Fuel cells, solar thermal systems, marine and recreational vehicles
- Beverage equipment and dispensers
Why choose Techma
With Techma GPM you get:
- Fast availability in Italy and across Europe
- Tailored technical support for OEMs and integrators
- Direct access to specialists in magnetic drive pump technology
Contact us
Techma GPM is an experienced distributor of OEM magnetic drive pumps. We offer tailored technical consulting, selection support, and availability for custom solutions.
