Electric diaphragm pumps

scarica documentazione in pdf

Electric diaphragm pumps

immagine

Per maggiore informazioni: www.aquatec.com

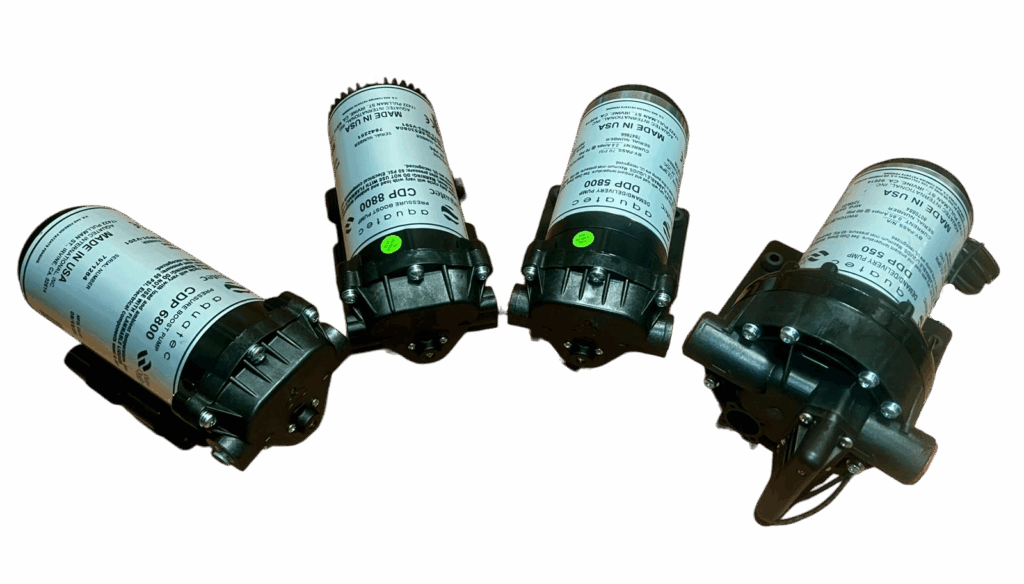

Aquatec’s 3-chamber and 5-chamber diaphragm pumps are used for a variety of transfer and recirculation applications including heat exchange for open or closed loop systems, diluted chemicals transfer, and agitation. They are the perfect solution also for a variety of water delivery applications including water pressurization
from an atmospheric tank, delivery of purified water to a specific point of use, or simply pressure’s increase when required.

Pump materials
– Pump body: PP, Nylon
– Membrane: Santoprene
– Valves: EPDM, Viton, Buna – O-Ring. EPDM, Viton, Nitril
Main features
– Liquid temperature up to 60°C with PP housing and 80°C with Nylon housing
– Self-priming
– Dry running without damage
– Brush motor: VAC (115 or 220) – VDC (12 or 24V)

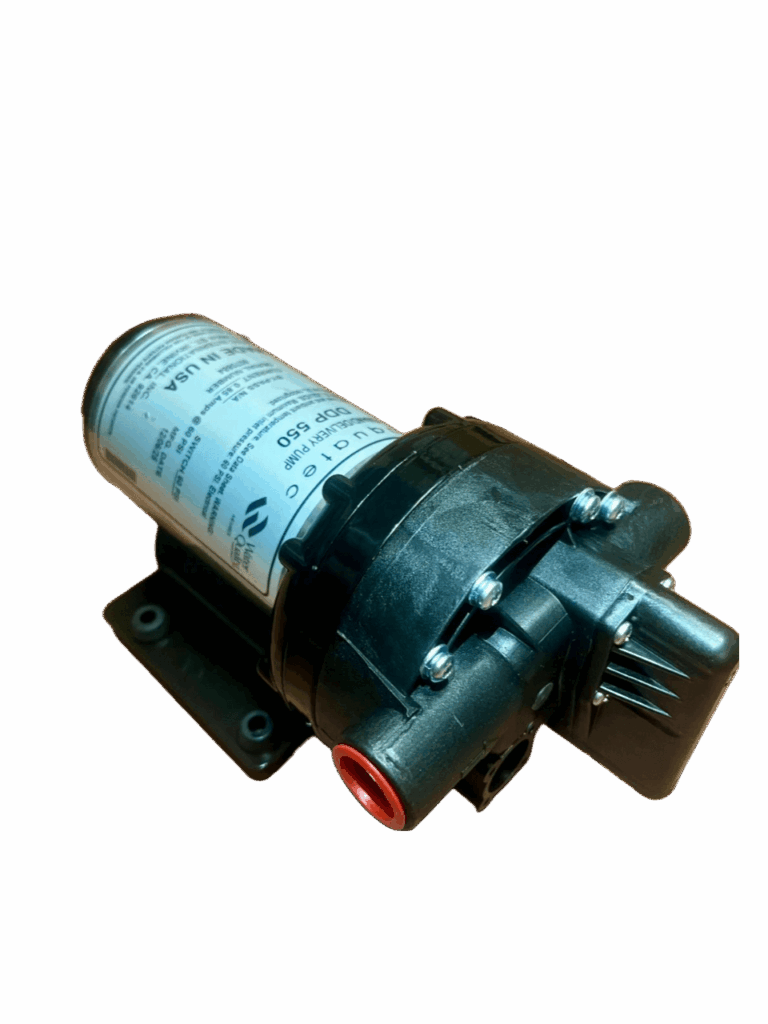

immagini 550 series
– Flow range 7 – 22 l/min
– Differential pressure up to 4 bar
– Port sizes/styles available: 1⁄2” Female NPT thread

Typical applications
– Water Treatment/RO
– Beverage/Foodservice
– Floor Care Spraying
– Solar Water Pumping
– Distillation Equipment
– Agricultural Spraying
– General Industrial
– Automotive


immagine

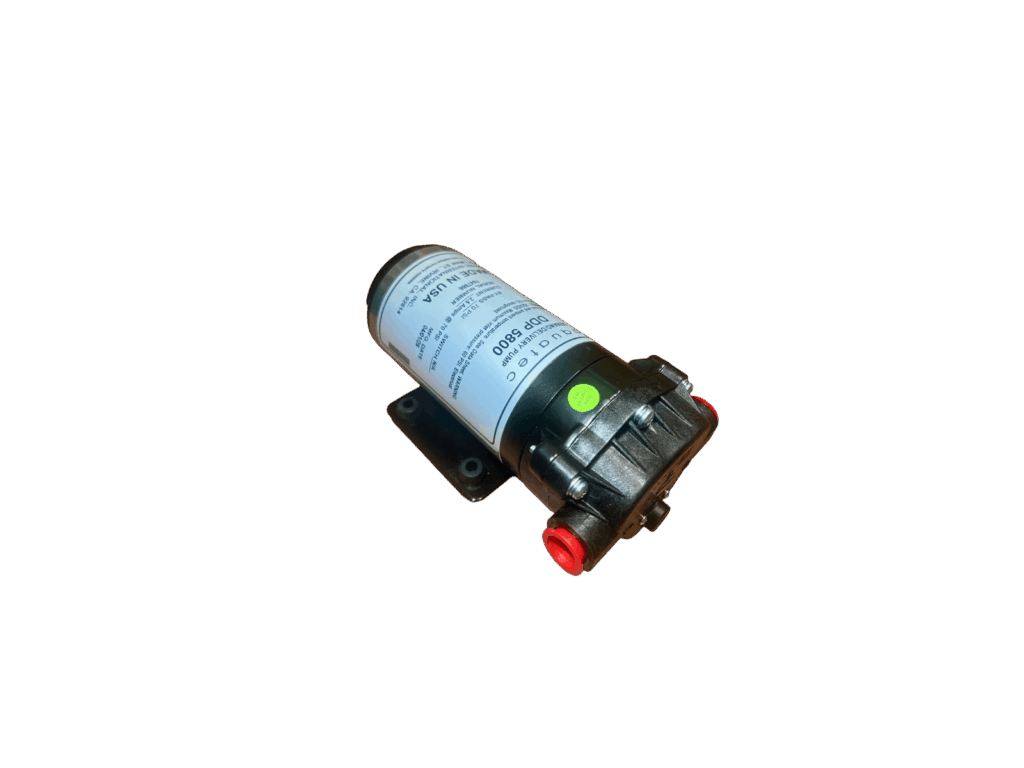

5800 series
– Flow range 2,5 – 7,5 l/min
– Differential pressure up to 6 bar with PP housing
and 15 bar with Nylon housing
– Port sizes/styles available: 3/8” female NPT thread,
or 3/8” push-in

Typical applications
– Laser Tool Cooling
– Welding Tool Cooling
– Coolant Circulation
– Water Transfer
– Automotive Fluid Transfer
– Diluted Chemical Dosing
– Ink Transfer
– Drip Irrigation Feed
– Fuel Cell Heat Exchange
– Sump Pump Out & Transfer

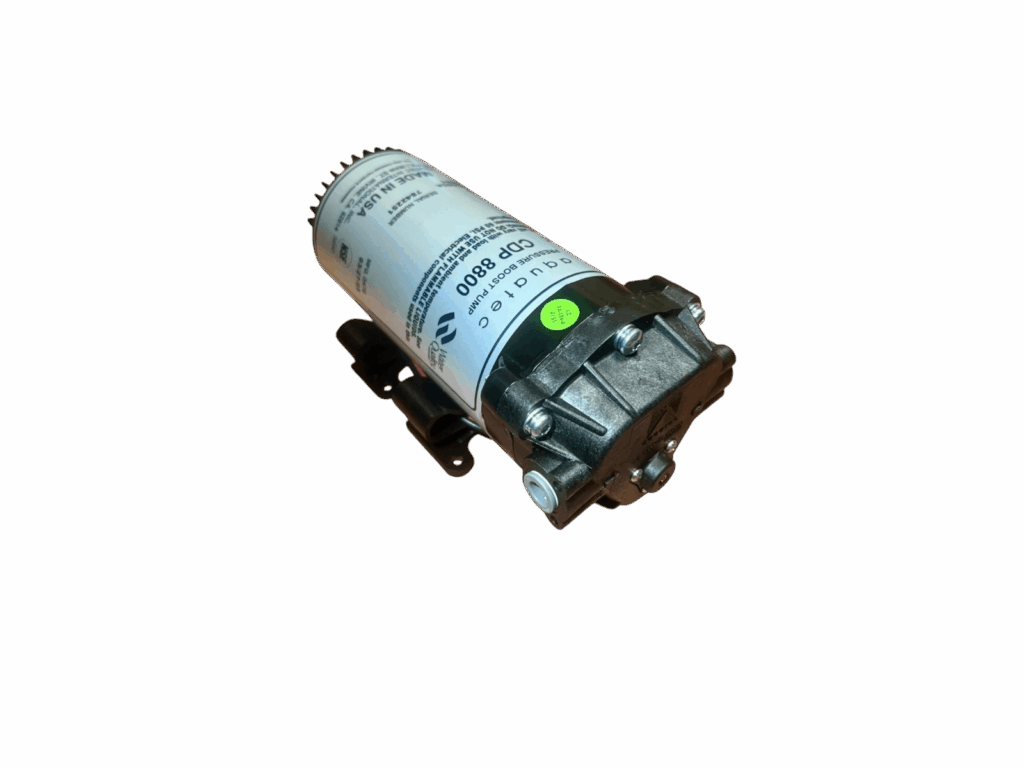

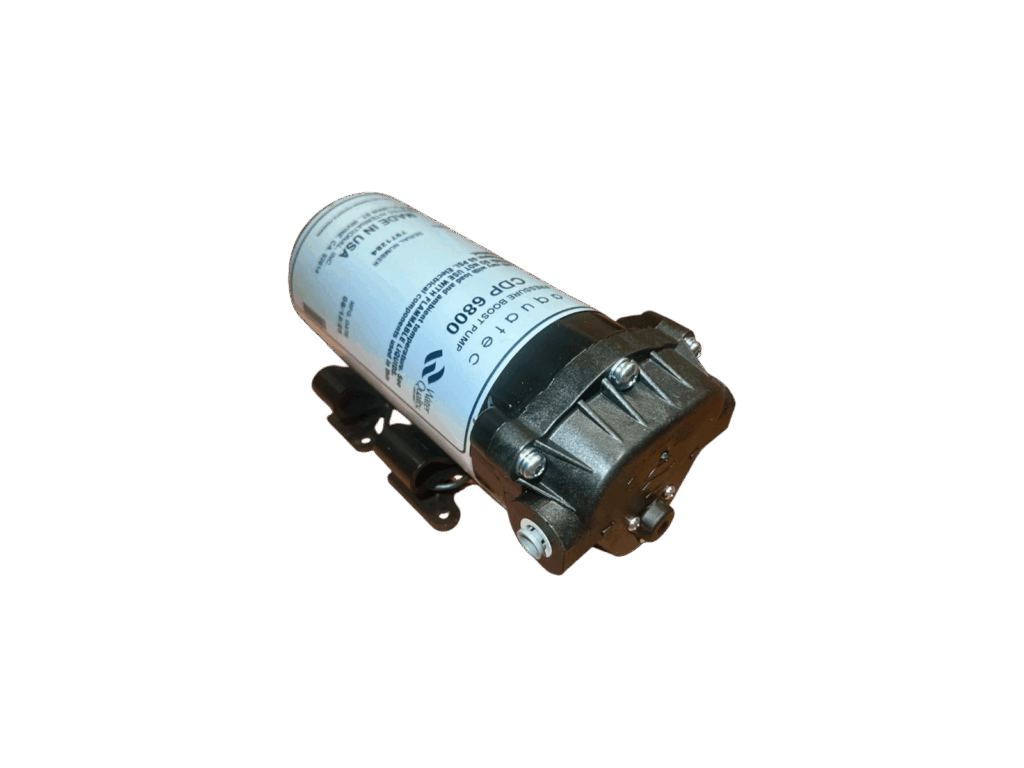

immagine 6800/8800 series
6800 flow range 0,7 – 0,9 l/min
8800 flow range 1 – 2,6 l/min
Differential pressure up to 6 bar with PP housing and 15 bar with Nylon housing
Port sizes/styles available: 1⁄4” or 3/8” push-in

Typical applications
– Water Treatment/RO
– Carbonation Systems
– Beverage/Coffee Systems
– Water Vending, Dispensing
– Hydroponics/Aeroponics
– Misting Systems
– Humidification
– HVAC Coil Cleaning
– Medical Lab Water
– Autoclave Systems
– Endoscope Reprocessing/Chemical Boost – Dialysis Chemical Injection
– Methanol & Water Injection
